Antec C8 Curve Wood E-ATX Full Tower Cabinet

Key Features

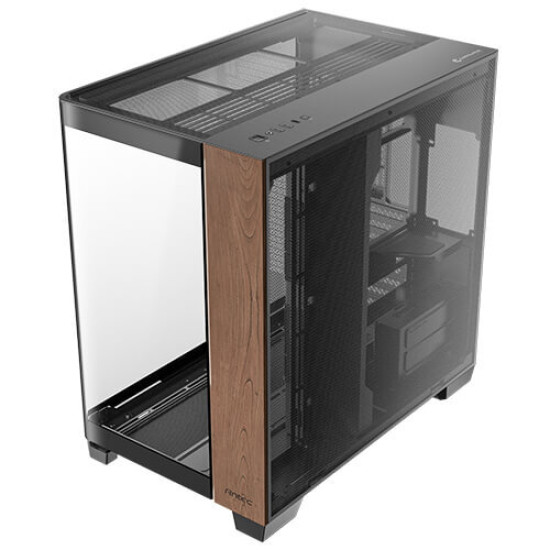

Super wide angle single curved glass with exotic wood

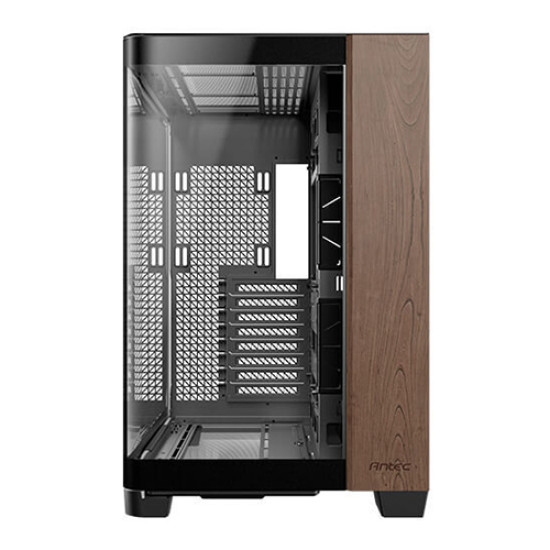

C8 Curve Wood employs single piece of curved tempered glass panel which provides an uninterrupted panoramic view. Right side of front is made of wood (walnut) that could be seamlessly integrated into your interior design style.

Support Back-Connect Motherboards

Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

Vertical Cooling

Can accommodate three 120mm/140mm or two 160mm fans each on top and bottom for efficient GPU cooling.

Bottom fan configuration

Comes with interchangeable fan brackets to cater to fans of different sizes.

Dual Chamber

Independent cooling for CPU/GPU on the left side & PSU/Drives on the right side.

Best Cooling Design

Support 3 x 360mm radiators on top, bottom, and side simultaneously for liquid cooling.

cavernous space for extreme liquid cooling

Top, bottom and right side all support THICK 360mm radiators, providing ultra cooling capability and efficiency.

Best Cooling Design

• Up to 10 fans simultaneously.
• Supports 2 x 160mm fans on top / 2 x 160mm fans on bottom / 1 x 140mm fan at rear

0.8mm + 1.0mm thick steel & Tool-Free design

The ultra robust 0.8mm & 1mm steel brings unwavering protection, and the tool-free quick-release panels on the front, top and sides make the assembly and cleaning of components simplified than ever.

Graphics cards installation

• Provides ample width to perfectly support wider RTX40 series GPU.
• Supports vertical GPU riser brackets after removal.
• Features 8 reusable PCIe slot covers.

POWER SUPPLY INSTALLATION

• Stylish PSU bracket with rubber pad to prevent scratch
• Vast room to house power supplies up to 210mm in length
• Support side-interface power supplies

I/O Panel

• Mainstream Type-C (10Gbps) port for high-speed transmission
• Dust plugs for dust prevention
• Mic/Audio 2-in-1 port

Specification

Dimensions : 464 x 303 x 476mm (DWH)

Form Factor : Full Tower

Materials : Steel + Plastic + Glass + Wood

Mainboard Support : E-ATX(280mm), ATX, M-ATX, ITX

Front Access & Controls : Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1,Headphone/Mic Combo Jack

Side Panel : 4mm Tempered Glass

Drive Bays

Expansion Slots : 8

3.5" : 1

2.5" : 2

Fan Support

Top : 3 x 120 / 3 x 140 / 2 x 160mm

Side : 3 x 120 / 2 x 140mm

Bottom : 3 x 120 / 3 x 140 / 2 x 160mm

Rear : 120 / 140mm

Radiator Support

Top : 120 / 140 / 240 / 280 / 360mm

Side : 120 / 140 / 240 / 280 / 360mm

Bottom : 120 / 140 / 240 / 280 / 360mm

Rear : 120mm

Clearance

Max GPU Length : ≤ 440mm

Max CPU Cooler Height : ≤ 175mm

Max PSU Length : (Not include cable)≤ 210mm

Miscellaneous

Dust Filter : Bottom
